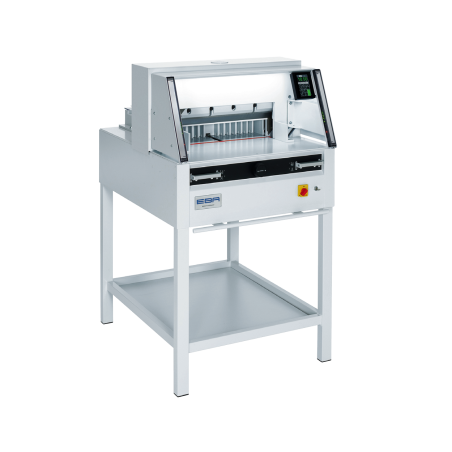

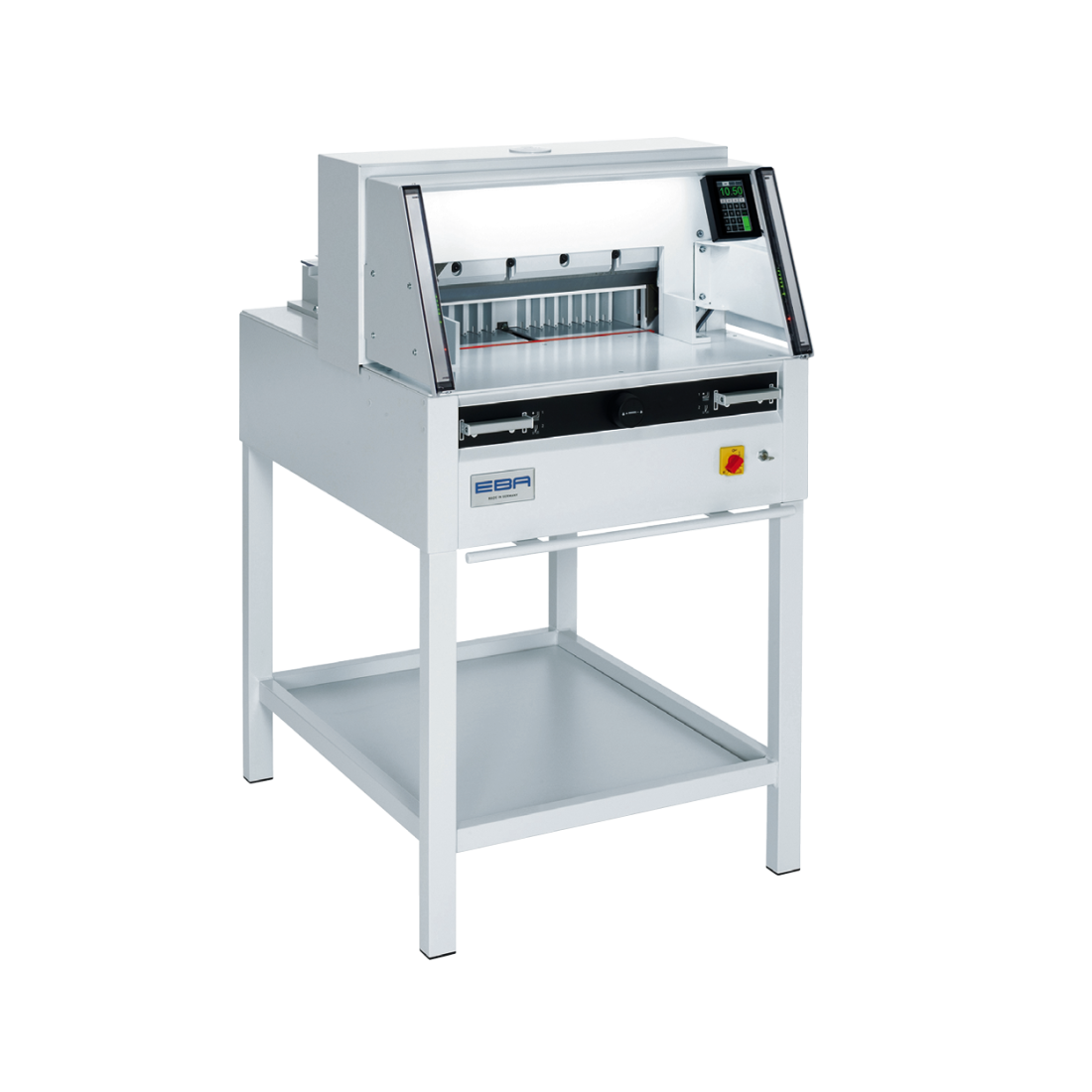

Guillotina EBA 4860
Guillotina EBA 4860

Programmable Guillotine with Easy-Cut Activation System, Automatic Pisón, Electric Rear Square with Touch Panel and Safety Tapas on the front and rear of the table. Equipped with Easy-Cut, a new patented system to activate the blade with both hands by a safe and comfortable operation. The ergonomic work height of 94 cm guarantees an effortless and independent operation. Especially sure thanks to the security system "SCS": Electronically controlled oscillating security cap on the front table; Safety cap on the back table; Main switch and key security lock; involvement of the two electronically controlled hands; 24 volt controls (low voltage); Safety mechanism patented by IDEAL; Automatic backspread of the blade and pising from any position; Disk brake for the immediate stoppage of the blade; Device for blade change with protection in the edge; depth adjustment of the blade from the outside of the machine; Easy change of the blade from the front of the machine without having to remove the tapas; Easy turn and / or change from the square. Electric rear squad with programmable control module and multi-language touch panel. Digital reading of measurements in cm or inches (presentation corresponding to 1/10 mm or 1/100 inches). 10-button keyboard to pre-select the measurements. Integrated calculator. Pre-programmed keys for standard formats. Programmable keys for a quick selection of the most used measurements. Memory for the repetition of cuts. 99 Programs with 99 steps each (in one step up to 15 cut repetitions) can be included. The program automatically runs with electronic cut control in program mode and cutoff mode. "Eject" function programmable to remove the paper. Function "SET" (selection) to choose the reference measure. Automary System with Error Visual Indicator. Electronic rotary control with multiple speeds (from very slow up to very fast) for the manual programming of the rear squad. Electromechanical drive of blade and pisoon. Optical cutting line with luminous and durable LEDs. Adjustable rear squad with small separations and plastic sliders. Two side stops on the front and rear of the table. Refightable blade made of high quality steel. Solid steel holder and adjustable guides. Fully metallic solid construction. Included table with tray, practical tool holder and taco to align paper. Available with lateral tables (optional). Technical specifications Cutting length, mm: 520. Cutting height, mm: 80. Narrow cut, mm: 35. Depth of the table, mm: 520. Electromechanical sheet drive. Automatic tread system. Electric rear squad. Manual configuration of the squad: Electric steering wheel. Indication of measurements: Digital screen (mm / inches). Electronic control of the squad: Touch panel. Programming mode: 99 programs, 99 steps. Leaf made of high quality German steel. Optical indicator of the cutting line by LED. Safety cover with electronic control at the front table. Practice table with storage shelf (standard equipment). Activation system of the patented blade Easy - Cut. Optional accessories (additional cost): Set of side tables. Dimensions, mm (alt. × × prof.): 1293 × 860 / 1436¹ × 1220. Power: 230 V / 50 Hz / 1.42 kW. ¹ With Side Tables Set
4018351005205

Guillotine EBA 4860

Referencia: 52563113
